Cheap YP Series Scotch Yoke Actuators Supplier, Factories

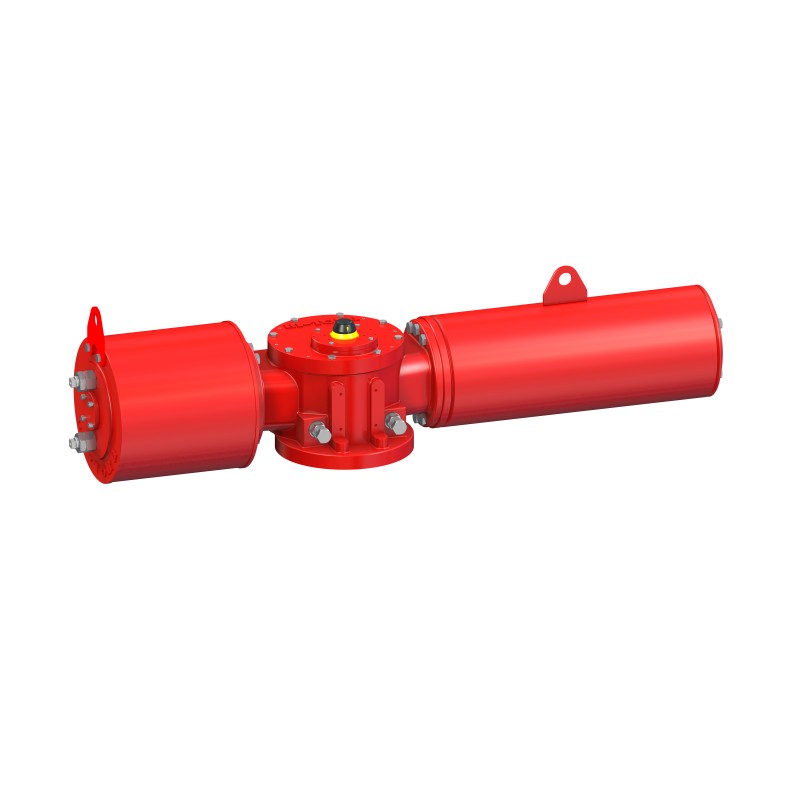

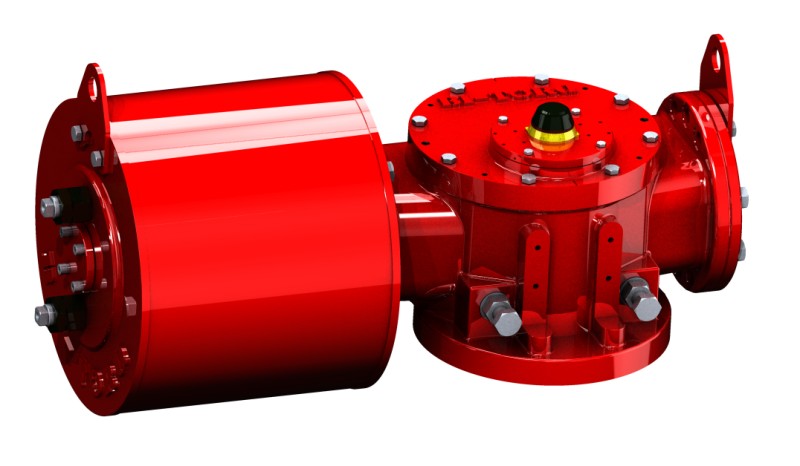

YP series actuators are pneumatic actuators designed and manufactured to meet the needs of valves with 90° switching. It is used to drive valves such as ball valves, butterfly valves, and plug valves, and is available in two types: double-acting and spring-return.

Send Inquiry

Product Description

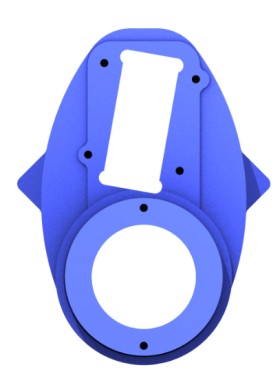

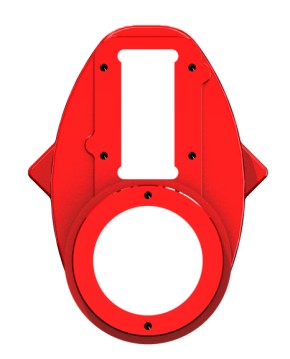

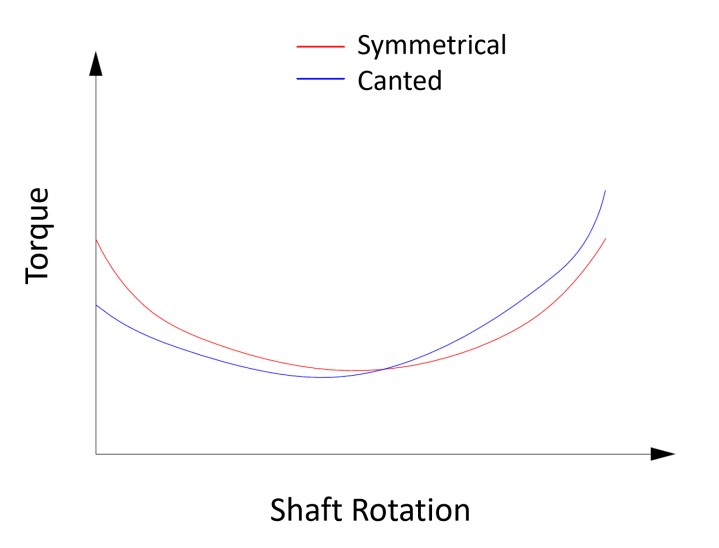

Symmetrical Yoke pneumatic actuators, with a more balanced torque curve, are mainly suitable for ball and plug valves. Canted Yoke pneumatic actuator with high starting torque and low running torque for butterfly valves.

Modular Design

Improves efficiency and safety across operation modules.

Cost Advantage

Designed according to valve torque requirements, reducing additional costs.

Reduced Maintenance Costs

Features corrosion-resistant internal coating and surface paint.

Improved Safety

Engineered to avoid risk of accidental spring discharge.

Modular Design

ISO Connecting Dimension

IP67 Protection level

NAMUR Mounting

±5° travel range adjustment

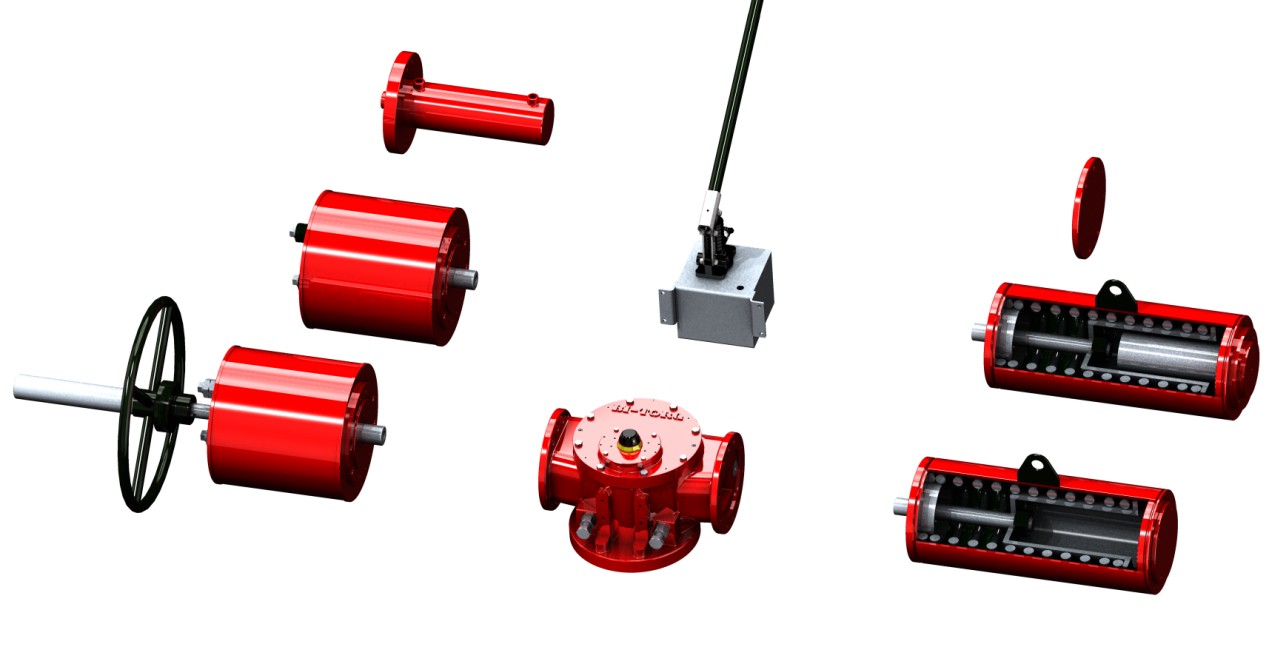

The main categories are: power modules, drive modules and spring modules. They provide the flexibility needed for ever-changing challenges.

The YP series modular actuators do not have external rods, which prevents rod failure caused by external factors such as corrosion or impact. The actuators feature protective internal and external coatings to ensure reliable operation in harsh environments. The copper slider structure improves contact between the pin and track to increase load capacity and wear resistance, extending service life.

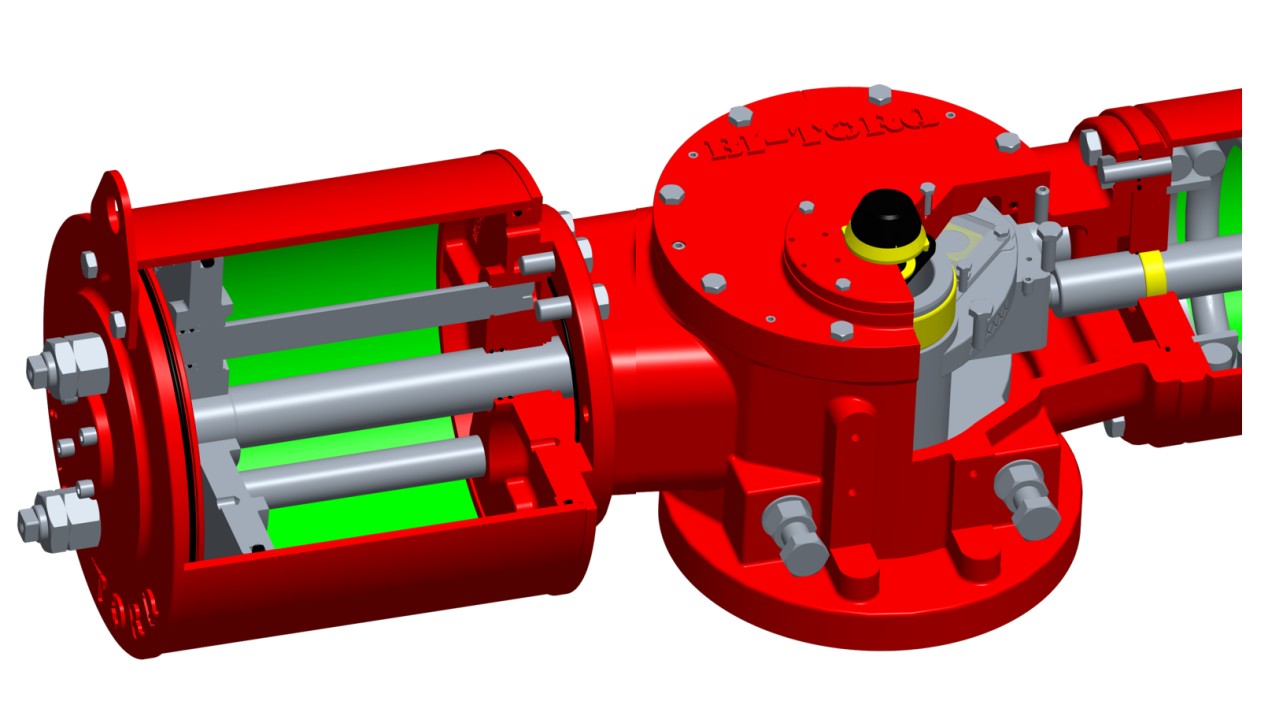

YP series modular actuator detailed cutaway

Modular actuators offer maximum safety for spring-return drives. In our latest design, the spring does not exert any pressure on the end cap of the actuator. The entire spring module is pre-compressed prior to assembly, effectively preventing the possibility of the compression spring popping out of the spring barrel and causing injury.

Air Pressure		3barg~7barg
Operating Temperature	Standard	-20℃～80℃
	High Temperature	-20℃～150℃
	Low Temperature	-40℃～80℃
Application Range		YP series pneumatic actuators are suitable for switching and regulating ball valves, butterfly valves, plug valves of large caliber, and can also be used for other quarter-turn devices.

Frequently Asked Questions

QWhat valves are symmetrical yoke and canted yoke actuators suitable for?

Symmetrical Yoke pneumatic actuators feature a more balanced torque curve, making them mainly suitable for ball and plug valves. Canted Yoke pneumatic actuators offer high starting torque and low running torque, making them ideal for butterfly valves.

QWhat components make up the modular design of these actuators?

The main categories consist of power modules, drive modules, and spring modules. This modular approach provides the flexibility needed to meet ever-changing operational challenges.

QHow does the design prevent rod failure in YP series actuators?

The YP series modular actuators do not feature external rods, which effectively prevents rod failure caused by external factors such as impact or corrosion.

QWhat is the operating temperature range for these actuators?

They support three temperature configurations: Standard (-20℃ to 80℃), High Temperature (-20℃ to 150℃), and Low Temperature (-40℃ to 80℃).

QHow is the safety of the spring-return drive guaranteed?

The entire spring module is pre-compressed before assembly, preventing the spring from exerting pressure on the end cap. This configuration prevents the danger of the compression spring popping out of the barrel and causing injury.

QWhat is the required air pressure and application range?

The operating air pressure ranges from 3barg to 7barg. The YP series actuators are suitable for switching and regulating ball valves, plug valves, butterfly valves of large caliber, and other quarter-turn devices.
