OEM Bevel Gearbox Multi-turn Gear Operator Manufacturer, Manufacturers

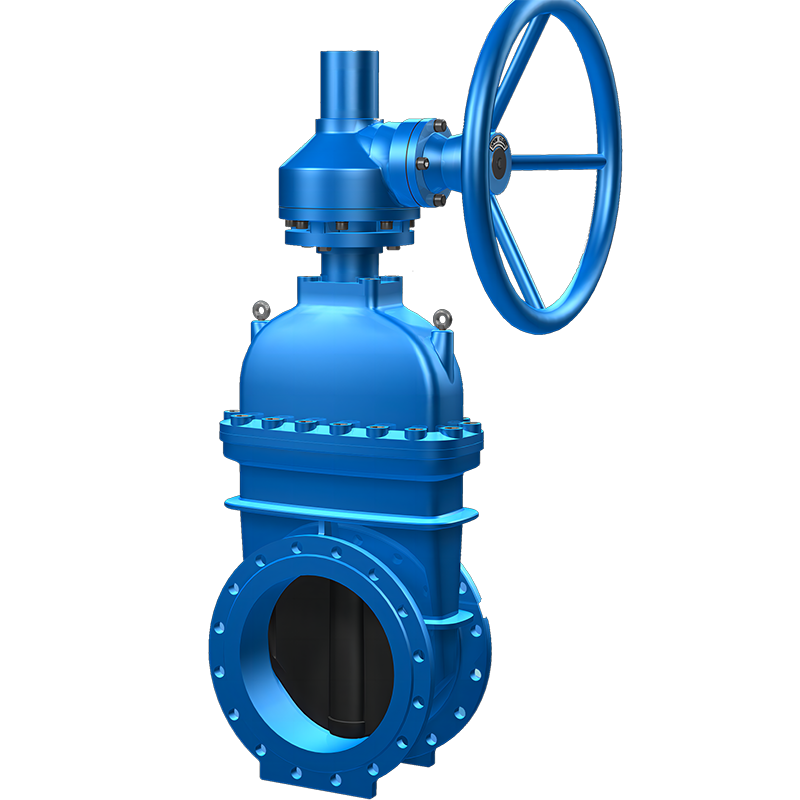

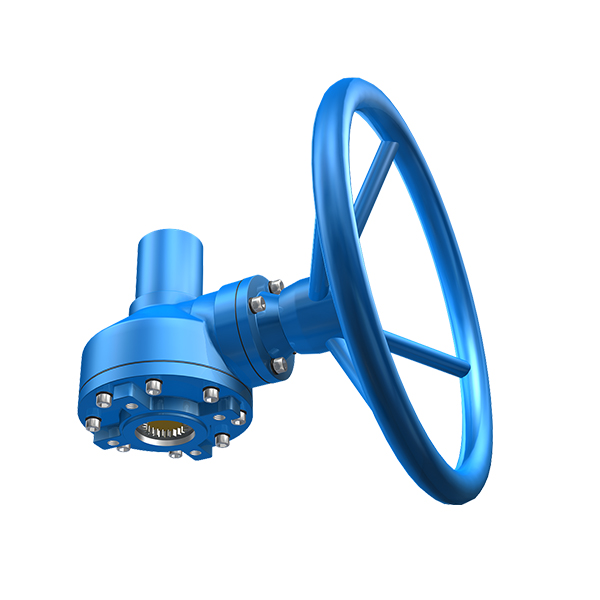

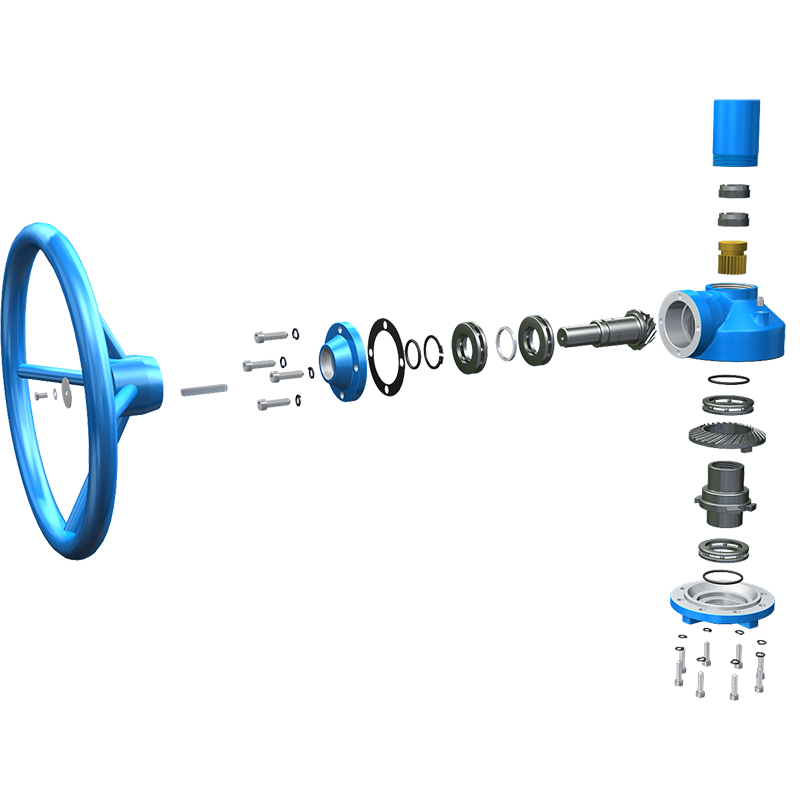

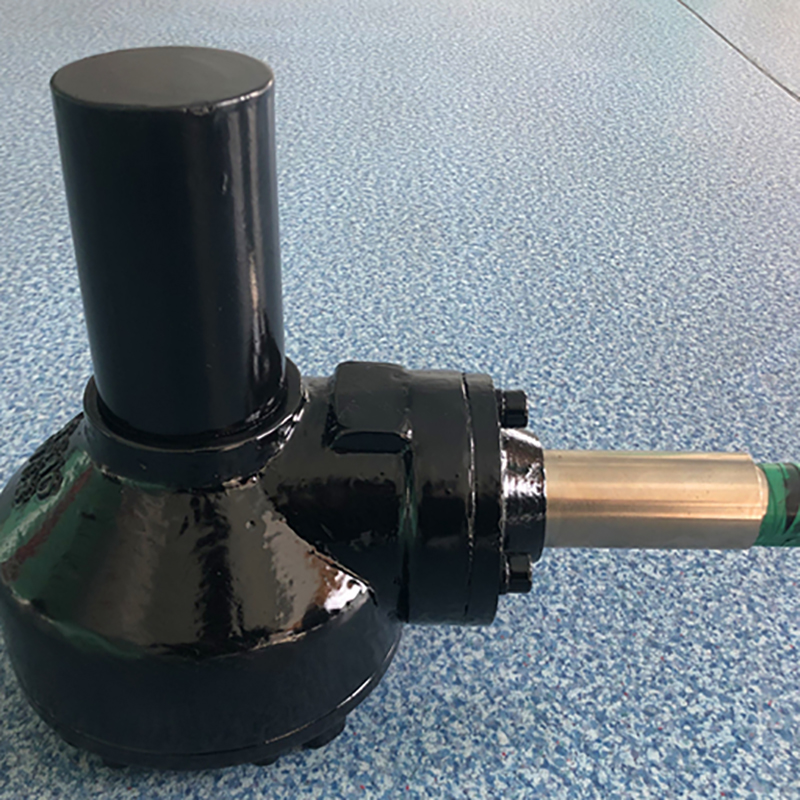

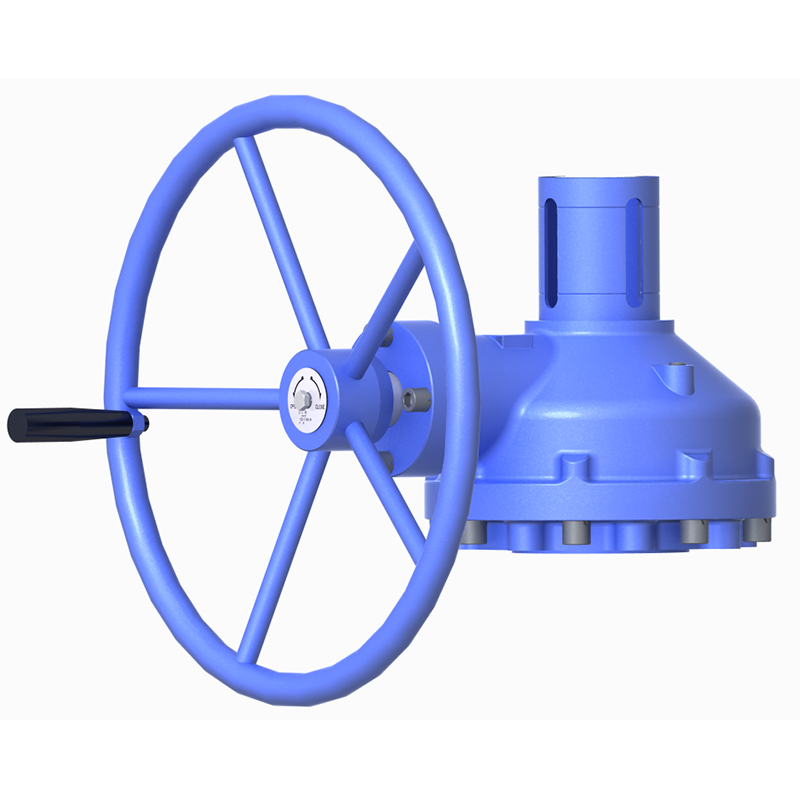

SB series multi-turn gear operators This gear operator series is made of cast steel and the optional material is HT. Bronze, D2 and QT nuts are available to fit in with the valve stem. This series is suitable for use on linear-motion valves including gate valves and globe valves, with the single-stage speed ratio varying from 2.3:1 to 71.1:1 and the torque from 220NM to 13500NM.

Send Inquiry

Product Description

Installation Instruction: Connect the bottom flange of the gear operator to the upper flange of the valve and slide the valve shaft into the drive nut. Tighten the flange bolt.

Operation Note: The valve can be closed by turning the hand-wheel clockwise and opened by turning the hand-wheel counterclockwise.

Key Design Features

LCB/LCC Casting

IP68 Grade Protection

Aluminum-Bronze Worm Gear

Stainless Steel Input Shaft

Designed with Lock Mechanism

Technical Specifications

Model	Gear ratio	Thrust Rating Max		Input Torque		Output Torque		Mech.Adv	weight(Kg)	Note
Model	Gear ratio	Kg	N	Kg-m	N-m	Kg-m	N-m	(±10%)	weight(Kg)	Note
SBS10	2.3:1	7061	69200	11	106	23	220	2.1	12	One-stage drive
SBS20	2.35:1	11020	108000	18	172	37	365	2.1	15
SB-0	2.6:1	11735	115000	26	252	60	590	2.4	20
SB-1	3.6:1	12245	120000	30	290	95	930	3.2	32
SB-2	4:01	22000	220000	42	414	152	1490	3.6	38
SB-3	4.1:1	26020	255000	55	542	204	2000	3.7	52
SB-4	5.2:1	27040	265000	73	723	347	3400	4.7	98
SB-5	6.3:1	46122	452000	83	810	470	4600	5.7	245
SB-6	7.11:1	83675	820000	99	970	632	6200	6.4	310
SGB-0-4.5	4.5:1	11735	115000	15	148	61	600	4.1	27	Two-stage drive
SGB-0-7.8	7.8:1	11735	115000	13	127	91	890	7	28
SGB-1-10.9	10.9:1	12245	120000	12	120	122	1200	10	33
SGB-2-12	12:1	22000	220000	12	120	183.7	1800	9.7	51
SGB-2-16.36	16.36:1	22000	220000	12	120	183.7	1800	15	57
SGB-3-12.3	12.3：1	26020	255000	15.5	152	234	2296	10.4	62
SGB-3-16.8	16.8:1	26020	255000	15.5	152	234	2296	15.1	67
SGB-4-28.8	28.8:1	27040	265000	16.5	162	429	4200	25.9	112
SGB-5-63	63:1	46122	452000	14	135	781	7652	56.7	238
SGB-6-71.1	71.1:1	83675	820000	21.5	211	1378	13500	54	304

WCB Casing

Welded Hand-wheel

IP67 Grade Protection

Bronze Nut

NBR Sealing Materials

Suitable for -20℃ ~ 120℃

Manual Operation: Turn the handwheel or input shaft to open or close the valve.

Lubrication: When the gearbox leaves the factory, the sealed inner cavity has been filled with grease (at room temperature) No. 3 general lithium base grease. The temperature of -20℃~120℃, for the gear box used in special environment such as low temperature, high temperature, will use different grease, such as high temperature grease, low temperature grease. If it is necessary to install the oil cup on the gearbox, please indicate in the order.

Stroke Adjustment: The range of stroke adjustment can achieve 360° adjustment.

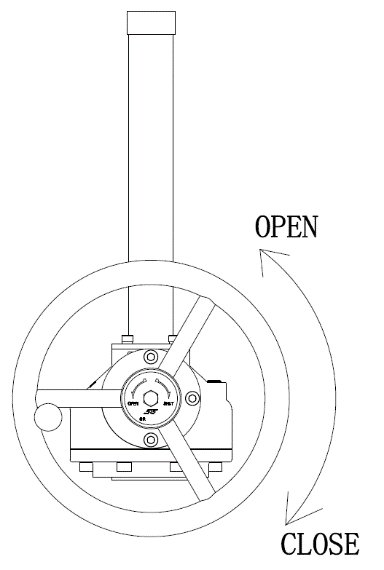

Schematic diagram of manual operation

Frequently Asked Questions

How do I manually open and close the valve using the gear operator?

The valve can be easily operated by turning the hand-wheel. Turn it clockwise to close the valve and counterclockwise to open the valve.

What type of grease is used in the gearbox, and does it support temperature extremes?

The inner cavity comes factory-filled with No. 3 general lithium base grease for standard room temperature operations. For extreme conditions (-20℃ to 120℃), specialized high-temperature or low-temperature greases are utilized depending on your environment.

What are the default casing and protection materials?

The gearboxes feature sturdy casting materials like LCB/LCC and WCB casing, combined with durable NBR sealing materials, bronze nuts, and stainless steel input shafts, achieving IP67 or IP68 grade protection.

Can I adjust the stroke of the gear operator?

Yes, the design supports a stroke adjustment range that can achieve a full 360° adjustment to match your valve configuration requirements.

Is it possible to customize the gearbox with an oil cup?

Yes. If your application requires the installation of an oil cup on the gearbox, please indicate this requirement clearly in your order.
